Optional hydraulic angle adjustment

A hydraulic front blade angle-adjustment kit is available for the Frontier™ AF11E model. It allows easy angle adjustment in order to overcome the toughest spots while working, saving time and creating professional-grade results. A loader third-function hydraulic line is required.

AF11 Series and AF12 Series Front Blades angle adjustment

The hydraulically controlled angle can be adjusted 30 degrees to each side to overcome the toughest spots. This feature saves time and creates professional-grade results. A loader third-function hydraulic line is required.

NOTE: AF11E models have an optional hydraulic angle adjustment available.

AF11 and AF12 Series cutting edge

The heat-treated steel cutting edge on the Frontier AF11 and AF12 Series Front Blades are reversible for twice the durability and work life.

Bolt-on back drag is perfect for tight areas

The bolt-on back drag attachment allows operators to rotate the AE11 Series Free-Stall Scraper forward and move material away from a wall, obstacle, or other hard-to-reach areas.

The pullback assembly does not need to be removed to obtain maximum production of the free-stall scraper.

The field-installed bolt-on back drag attachments come in a variety of sizes for the free-stall scrapers.

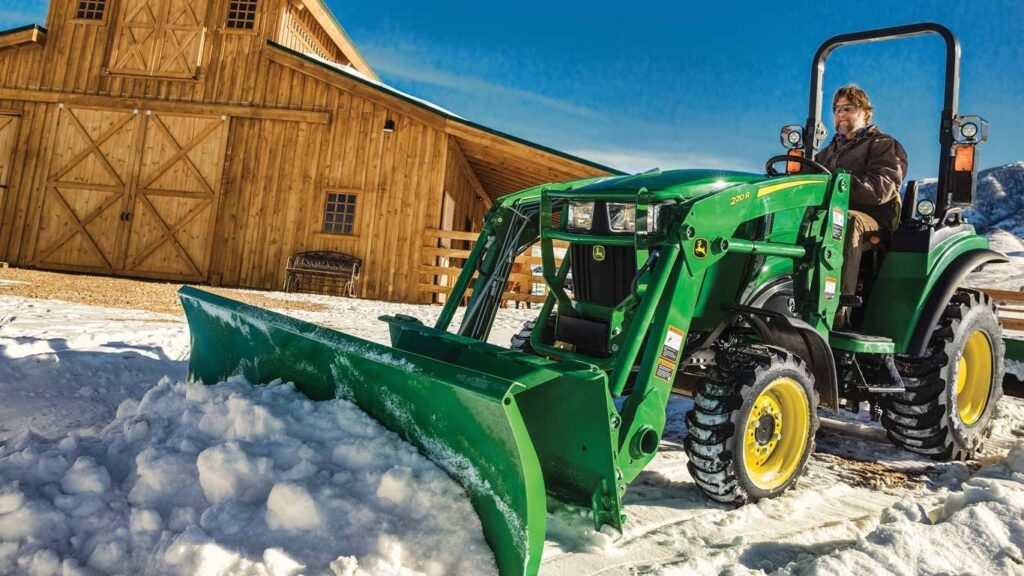

AF11 and AF12 Series Front Blades are built strong

The loader-mounted front blade is made of heavy-duty steel to resist bending and provide longer wear capability on the Frontier™ AF11 and AF12 Series Front Blades.

AF11E and AF12E connecting points

AF11 and AF12 Series frame

Attaching the Frontier AF11 and AF12 Series Front Blades to a John Deere loader is easy with the Quik-Tatch feature. Just line up the loader’s connecting points to the attachment frame; then, lock the frame in place.
