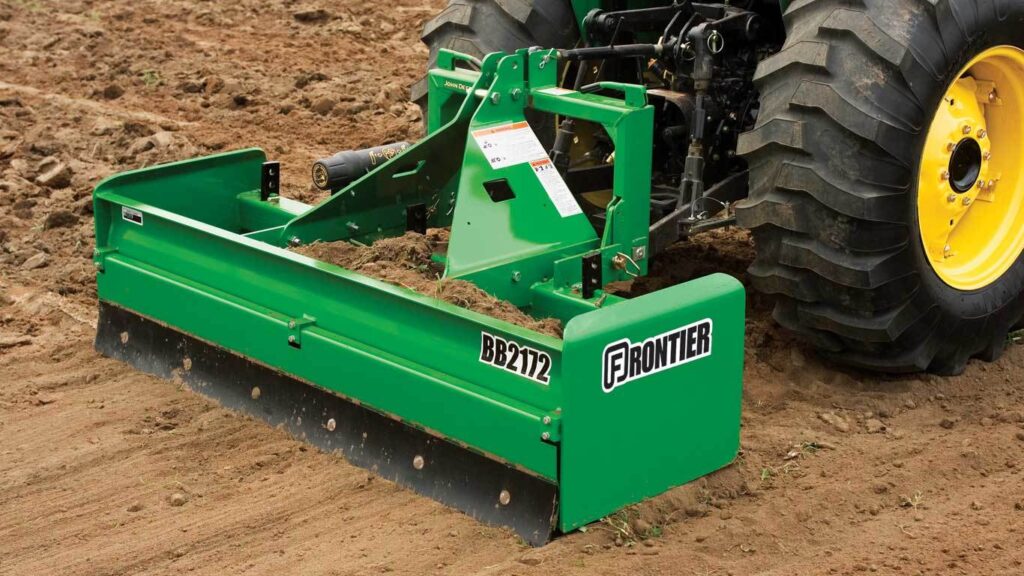

BB21 Series Box Blades
Box Blades
Equipment Description
- Cutting edge is strategically positioned
- Floating tailgate helps in rough Conditions
- Matchâ„¢ compatible for quick, efficient hookup
- Scarifier has three depth adjustments
Featured Content
Dimensions
| Working width | 213.4 cm 84 in. |
||
|---|---|---|---|
| Unit height | 85.1 cm 33.5 in. |
||
| Unit depth | 78.7 cm 31 in. |
||
| Endplate thickness | 1 cm 0.375 in. |
||
| Moldboard thickness | 0.5 cm 0.1875 in. |
Weight
| Operating weight | 302.5 kg 667 lb |
||
|---|---|---|---|
| Shipping | 343.4 kg 757 lb |
Tractor compatibility
| PTO Horsepower | Max: 52.5 kW 70 hp |
|---|
Hitch
| Compatibility | Cat. 1 | ||
|---|---|---|---|
| iMatchâ„¢ compatible (Cat. 1) | |||
| Quick coupler (Cat. 2) |
Box
| Capacity | 0.63 m3 22.3 cu ft |
||
|---|---|---|---|
| Design | Reinforced with formed edge end plates |
Cutting edge
| Reversible | Yes | ||
|---|---|---|---|
| Quantity | Two | ||
| Size | 1.27×15.24 cm 0.5×6 in. |
Scarifier shank and beam
| Shank type | 3 position with holes | ||
|---|---|---|---|
| Points | Replaceable | ||
| Quantity | Seven | ||
| Tubular scarifier beam size | 10.16×10.16×0.64 cm 4x4x0.25 in. |
||
| Beam reinforcement bar size | 0.95×2.54 cm 0.375×1 in. |
Tailgate
| Type | Floating |
|---|
Mast
| Type | Bolt on |
|---|
Paint
| Color | JD Green |
|---|
Shipping
| Configuration | One unit |
|---|
Set-up time
| Labor hours | 0.5 |
|---|
Warranty
| Time period | 1 year |
|---|
