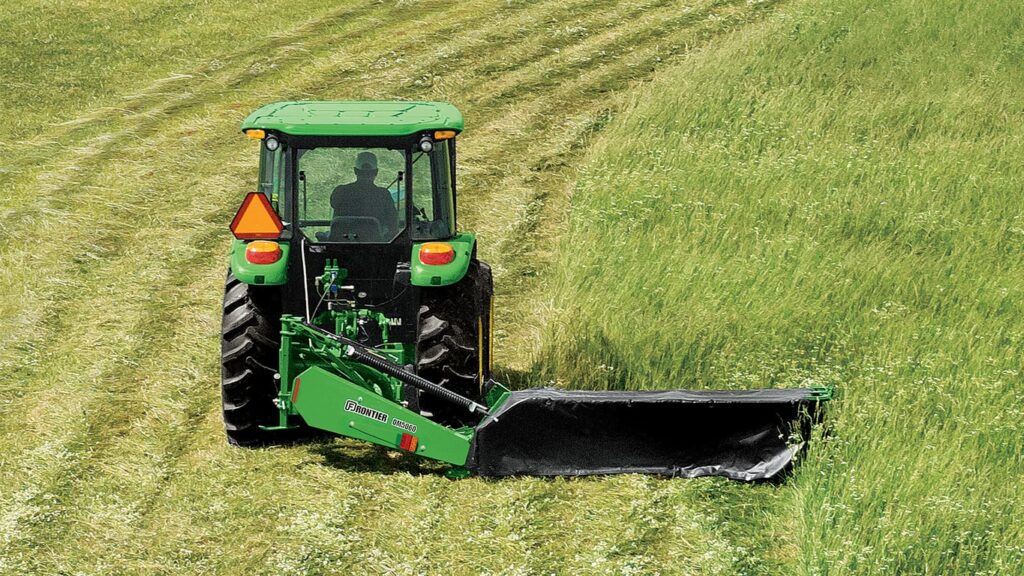

John Deere
DM50 Series Disc Mowers
Disc Mowers
Equipment Description
- Rope System transport latch
- Quick-remove shear hub assembly
- DM5050 & 5060 iMatch and Quick Coupler compatible
- DM5070 Cat. 2 Quick Coupler compatible
| Hitch - Type | 3-point |
|---|---|
| Cutterbar - Lift mechanism | Hydraulic |
| Hitch - Category | Category 1, Category 2 - iMatch and Quick-Coupler compatible |
| Cutting discs - rpm | 3,000 rpm |
| Set-up time (per unit) - Labor hours | 1 |
| Dimensions - Operation of cutting angle | +/- 25 degree (angle) |
| Cutting discs - Quantity | Six |
| Knives - Quantity | 12 |
| V-belts with tensioner - Quantity | Four |
| Warranty - Time period | 1 year |
| Weight - Shipping (1 unit and crate) | 998 kg 2,200 lb |
| Tractor compatibility - Minimum PTO | PTO drive rpm 540 rpm 33.6 kW 45 PTO hp |
| Dimensions - Swath width | 1.75 m 5.7 ft |
| Weight - Per machine | 442 kg 975 lb |
| Dimensions - Cutting width | 2.36 m 7.7 ft |
Featured List
- Cutting Width: 6 ft. 6 in. (2.0 m)
- Hitch: Cat. 1 or 2
- PTO HP: 40 hp (29.4 kW)
Featured Content
Outer swath wheel
Add the outer swath wheel to the DM50 Series Disc Mower to achieve separation between cut and uncut crop. By keeping the cut crop out of the uncut crop, cutting is not happening twice, which would reduce overall productivity. The swath wheel is fully adjustable up and down the length of the cutterbar, and it bolts directly to the top frame with U-bolts.
DM50 in transport position
DM50 in operating position
The transport lock system is a simple mechanical system that saves time and ensures safety. Use the rope system to raise the transport lock, engage selective control valve (SCV) 1 to bring the cutterbar into the transport position, and release the rope system to lock for transport.
Park stand in park position
Park stand in operating position
The DM50 Series Disc Mower park stand and parking arm work together to transfer the mower’s weight to the cutterbar while in the parked position. This makes the attachment process easier, saving time and frustration.
Park arm in park position
Park arm in operating position
Oval-shaped disc removed
Cutterbar serviceability is easier on the DM50 Series Disc Mowers. Remove the oval-shaped disc(s) with only four bolts per disc. The shear hub assembly can be serviced by removing the remaining four bolts. This will save time and oil replacement costs by not splitting the entire cutterbar to replace the sheared hubs as required in previous models.
Shear hub assembly on DM50 Series
Shear hub assembly on DM50 Series
Take the shear hub assembly off the cutterbar by removing only eight bolts.
DM50 Series float spring tension adjustment
Set the float spring to get maximum performance during operation. Adjust properly so the down pressure does not damage crop stubble as the skid shoes pass through the field.
