John Deere

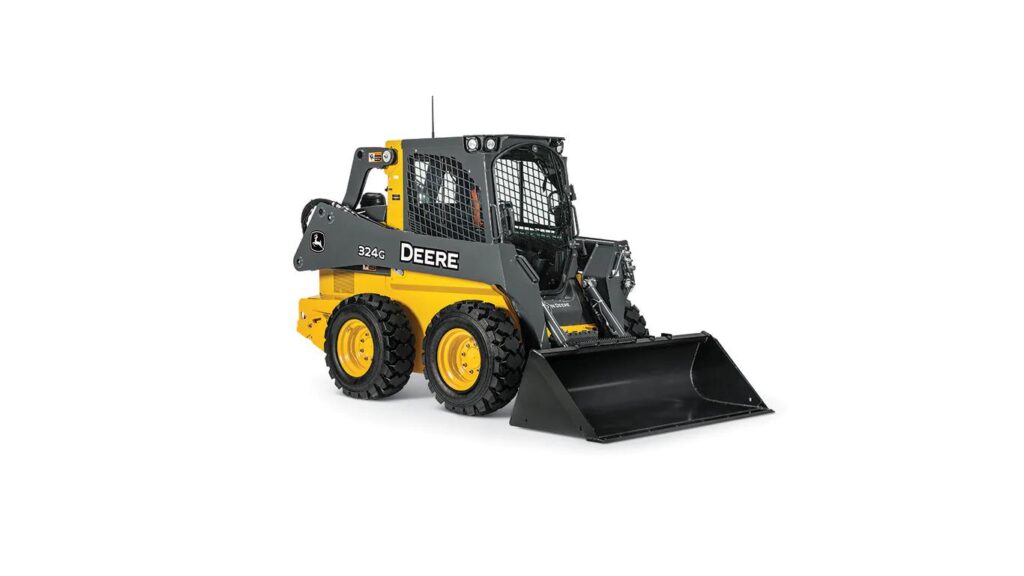

324G Skid Steer
Compact Construction Equipment
Equipment Description
- Rated Operating Capacity: 1221 kg (2,690 lb.)
- Gross Horsepower: 55.0 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 3496 kg (7,700 lb.)
Select a category to view specifications (or view all).
| DIMENSIONS - Ground Clearance, mm (inches) | 240 (9.3) |
|---|---|
| PERFORMANCE - Tipping Load - Foundry, kg (lbs) | 2443 (5380) |
| PERFORMANCE - Rated Operating Capacity - Foundry, kg (lbs) | 1221 (2690) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 79 (21) |
| DIMENSIONS - Length - With Bucket Foundry, mm (inches) | 3460 (136.3) |
| PERFORMANCE - Hydraulic Power, kW (hp) | 31.009 (41.5) |
| DRIVELINE - SAE Net Power, kW (hp) | 52.5 (70) |
| DRIVELINE - Drive Chain Rating [ANSI] | 80 - HD |
| PERFORMANCE - Rated Operating Capacity - Optional Counterweight Foundry, kg (lbs) | 1294 (2850) |
| DRIVELINE - Rated Engine Speed, rpm | 2500 |
| DESCRIPTION - Lift Geometry | Vertical |
| DIMENSIONS - Dump Angle, Degrees | 41 |
| PERFORMANCE - Pump Output, lt/min (gallons (US) / min) | 78 (21) |
| DESCRIPTION - Fleet Management | Yes |
| WEIGHTS - Operating Weight - Foundry, kg (lbs) | 3496 (7700) |
| PERFORMANCE - Breakout - Lift Foundry, kN (lbf) | 23.3 (5250) |
| DRIVELINE - Engine Manufacturer | Yanmar |
| DIMENSIONS - Dump Height - Maximum Foundry, mm (inches) | 2590 (102.1) |
| DRIVELINE - SAE Gross Power, kW (hp) | 55 (74) |
| DIMENSIONS - Rollback - Ground Level, Degrees | 34 |
| DIMENSIONS - Width - No Bucket, mm (inches) | 1700 (67) |
| PERFORMANCE - Breakout - Bucket Foundry, kN (lbf) | 38.9 (8750) |
| DRIVELINE - Aspiration | Turbo |
| DIMENSIONS - Overall Height, mm (inches) | 2060 (81.1) |
| DIMENSIONS - Rear Departure Angle, Degrees | 28 |
| PERFORMANCE - Speed - Maximum, kph (mph) | 11.1 (6.9) |
| PERFORMANCE - Hydraulic Power - Option, kW (hp) | 47.103 (63.1) |
| DIMENSIONS - Wheelbase, mm (inches) | 1120 (44.2) |
| PERFORMANCE - Speed - Maximum Option, kph (mph) | 17.9 (11.1) |
| DRIVELINE - Emission Rating | Tier 4 |
| DIMENSIONS - Height to Hinge Pin, mm (inches) | 3200 (126) |
| DRIVELINE - Max. Gross Torque, Nm (lbf / ft) | 280 (207) |
| PERFORMANCE - Pump Flow - Option, lt/min (gallons (US) / min) | 120 (32) |
| DRIVELINE - Tire size - Standard | 12 x 16.5 - 12 PR SKS |
| DIMENSIONS - Length - No Bucket, mm (inches) | 2850 (112.3) |
| DRIVELINE - Engine Model | 4TNV98CT |
| DIMENSIONS - Reach - Max Dump Height Foundry, mm (inches) | 760 (29.9) |
| DESCRIPTION - Proximity Guidance | No |
| DESCRIPTION - Precision Guidance | No |
| PERFORMANCE - Axle Torque - Maximum, Nm (lbf / ft) | 6771 (4994) |
| PERFORMANCE - System Pressure, bar (PSI) | 237.87 (3450) |
| DRIVELINE - Displacement, ltr (Inches³) | 3.3 (203) |
Featured List
- BUCKET BREAKOUT FORCE: 2724 kg (6,000 lb.)
- RATED OPERATING CAPACITY: 1221 kg (2,690 lb.)
- GROSS HORSEPOWER: 55.0 kW (74 hp)
- NET HORSEPOWER: 52.5 kW (70 hp)
- LIFT HEIGHT: 3.20 m (126.0 in.) (10 ft. 6 in.)
- OPERATING WEIGHT: 3496 kg (7,700 lb.)
Featured Content
With the universal Quik-Tatch,™ you can go from skid steer bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, roller levels, trenchers, or power rakes, to list just a few.
- Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
- Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
- Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
- Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
- Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
- Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.
- Industry-leading bucket breakout forces and auxiliary flow
- The 324G’s height to hinge pin is 10 ft. 6 in. to easily load high-sidewall dump trucks, feed mixers, and hoppers.
