John Deere

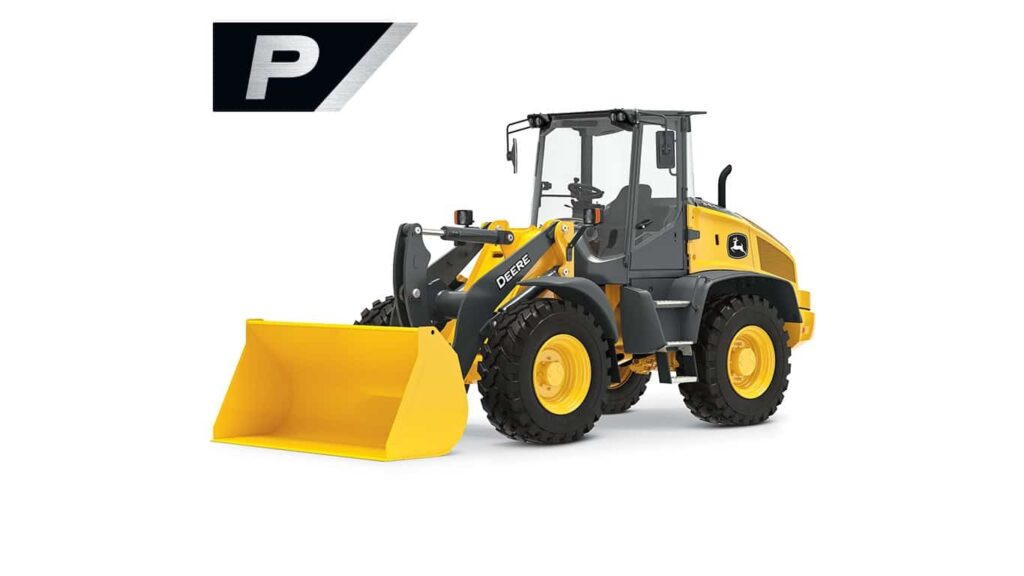

344 P-Tier Compact Wheel Loader
Compact Construction Equipment
Equipment Description
- Net Power: 76 kW (103 hp) at 2,000 rpm
- Operating Weight: 8860 kg (19,533 lb.)
- Bucket Capacity: 1.5–2.0 m3 (2.0–2.6 cu. yd.)
Select a category to view specifications (or view all).
| DIMENSIONS - Wheelbase, mm (ft/in) | 2600 (8 ft 6 in) |
|---|---|
| CAPACITIES - Pump Flow - 1, lt/min (gallons (US) / min) | 115 (30) |
| DRIVELINE - Transmission Type | Hydrostatic |
| DRIVELINE - Front Differential Type | Locking |
| DRIVELINE - Rated Speed, rpm | 2000 |
| WEIGHTS - Operating Weight, kg (lbs) | 8860 (19533) |
| CAPACITIES - Pump Type | Gear |
| CAPACITIES - System Pressure, bar (PSI) | 240 (3480) |
| DIMENSIONS - Height - Pivot Pin, mm (ft/in) | 3720 (12 ft 2 in) |
| CAPACITIES - Ride Control System | Yes |
| DIMENSIONS - Ground clearance, mm (inches) | 430 (16.9) |
| DRIVELINE - Rear Differential Type | Open |
| DRIVELINE - Service Brake - Type | Wet Disc & Drum |
| DRIVELINE - Displacement, ltr (Inches³) | 4.5 (275) |
| DRIVELINE - Parking Brake - Type | Wet Disc |
| DRIVELINE - Engine Model | PowerTech PWS 4045H |
| CAPACITIES - Breakout - Bucket, kgf (lbf) | 7443.9 (16411) |
| DIMENSIONS - Height - Over Cab, mm (ft/in) | 3030 (9 ft 11 in) |
| DRIVELINE - Tire size - Standard | 17.5 R25 |
| DRIVELINE - Service Brake - Actuation | Hydraulic |
| DIMENSIONS - Reach - At 2130mm 45° Dump, mm (ft/in) | 1640 (5 ft 5 in) |
| DIMENSIONS - Width Over tires - Std, mm (ft/in) | 2370 (7 ft 9 in) |
| DRIVELINE - Torque, Nm (lbf / ft) | 405 (299) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 155 (40.9) |
| DRIVELINE - Engine Manufacturer | John Deere |
| CAPACITIES - Heaped Capacity, m³ (yd³) | 1.5 (2) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 115 (30.4) |
| DRIVELINE - Engine Output - Net, kW (hp) | 76 (103) |
Featured List
- Bucket Capacity: 1.5–2.0 m3 (2.0–2.6 cu. yd.)
- Engine Net Power: 76 kW (103 hp)
- Cab Height: 3.03 m (9 ft. 11 in.)
- Operating Weight: 8,860 kg (19,533 lb.)
Featured Content
- Low-effort joystick controls boom and bucket, forward-neutral-reverse (F-N-R), and differential lock. Adjustable-height monitor lets operators keep close watch on vital machine functions.
- Industry-exclusive Articulation Plus™ steering system combines 30 degrees of articulation with 10 additional degrees of rear-wheel steer. Reduced articulation angle design delivers tighter turns that are more stable, especially with large loads, than comparatively sized loaders without Articulation Plus.
- Loader arm and coupler design improves the lifting path to near parallel — for better load-carrying capability than previous models. This keeps the load more level from ground to truck-bed height and helps the operator focus on the task instead of on making manual adjustments.
- With a standard top speed of under 25 mph, the 344 P-Tier can make some pretty quick moves on and between jobsites.
- Outstanding reach enables the 344 P-Tier to efficiently dump to the center of tandem-axle trucks, for quick loading cycles. With exceptional lift and height to hinge pin, the optional High-Lift configuration makes this capable compact especially adept at repetitive dumping and stacking applications.
- Standard ride control cushions the boom during travel over rough and uneven terrain, reducing material spillage from the bucket and minimizing site cleanup.
