John Deere

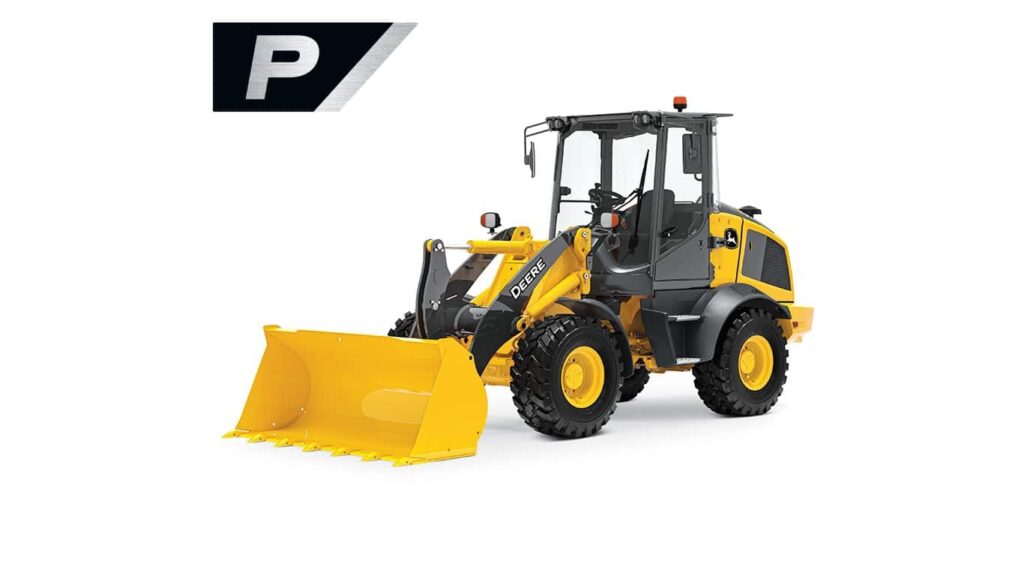

324 P-Tier Compact Wheel Loader
Compact Construction Equipment
Equipment Description
- Net Power: 52 kW (71 hp) at 2,400 rpm
- Operating Weight: 6400 kg (14,110 lb.)
- Bucket Capacity: 0.8–1.6 m3 (1.0–2.1
cu. yd.)
Select a category to view specifications (or view all).
| DRIVELINE - Front Differential Type | Locking |
|---|---|
| DRIVELINE - Displacement, ltr (Inches³) | 3.3 (203) |
| DRIVELINE - Engine Model | 4TNV98CT |
| DIMENSIONS - Height - Pivot Pin, mm (ft/in) | 3350 (11 ft ) |
| DRIVELINE - Parking Brake - Type | Wet Disc |
| CAPACITIES - Ride Control System | Yes |
| CAPACITIES - Heaped Capacity, m³ (yd³) | 1.1 (1.4) |
| DRIVELINE - Tire size - Standard | 405 / 70 R20 |
| CAPACITIES - System Pressure, bar (PSI) | 189.6 (2750) |
| DRIVELINE - Rear Differential Type | Open |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 90 (23.8) |
| DIMENSIONS - Reach - At 2130mm 45° Dump, mm (ft/in) | 1660 (5 ft 5 in) |
| DRIVELINE - Rated Speed, rpm | 2400 |
| DRIVELINE - Engine Output - Net, kW (hp) | 52 (71) |
| CAPACITIES - Pump Flow - 1, lt/min (gallons (US) / min) | 93 (25) |
| DRIVELINE - Transmission Type | Hydrostatic |
| DRIVELINE - Service Brake - Type | Wet Disc & Drum |
| DRIVELINE - Service Brake - Actuation | Hydraulic |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 66 (17.4) |
| CAPACITIES - Pump Type | Gear |
| DRIVELINE - Engine Manufacturer | Yanmar |
| DIMENSIONS - Width Over tires - Std, mm (ft/in) | 2090 (6 ft 10 in) |
| DIMENSIONS - Height - Over Cab, mm (ft/in) | 2780 (9 ft 1 in) |
| DRIVELINE - Torque, Nm (lbf / ft) | 280 (206) |
| CAPACITIES - Breakout - Bucket, kgf (lbf) | 5650 (12456) |
| DIMENSIONS - Wheelbase, mm (ft/in) | 2300 (7 ft 7 in) |
| DIMENSIONS - Ground clearance, mm (inches) | 295 (12) |
| WEIGHTS - Operating Weight, kg (lbs) | 6400 (14110) |
Featured List
- Operating Weight: 6,400 kg (14,110 lb.)
- Bucket Capacity: 0.8–1.6 m³ (1.0–2.1 cu. yd.)
- Engine Net Power: 52 kW (71 hp)
- Cab Height: 2.78 m (9 ft. 1 in.)
Featured Content
- Industry-exclusive Articulation Plus™ steering system combines 30 degrees of articulation with 10 additional degrees of rear-wheel steer. Reduced articulation angle design delivers tighter turns that are more stable, especially with large loads, than comparatively sized loaders without Articulation Plus.
- Low-effort joystick controls boom and bucket, forward-neutral-reverse (F-N-R), and differential lock. Standard mini-joystick controls auxiliary hydraulic functions including optional high flow. Adjustable-height monitor lets operators keep close watch on vital machine functions.
- Standard ride control cushions the boom during travel over rough and uneven terrain, reducing material spillage from the bucket and minimizing site cleanup.
- Loader arm and coupler design improves the lifting path to near parallel — for better load-carrying capability than previous models. This keeps the load more level from ground to truck-bed height and helps the operator focus on the task instead of on making manual adjustments.
- With exceptional lift and height to hinge pin, the optional High-Lift configuration makes the 324 P-Tier especially adept at repetitive dumping and stacking applications.
- With a standard top speed of over 23 mph, the 324 P-Tier can make some pretty quick moves on and between jobsites.
